FITT
Modern Configurable Furniture System
FITT
Modern Configurable Furniture System
FITT Console Features
For additional features and further information, please refer to our product guide in the downloads section below.
1
2
3
4
5
6
7
8
9
1
Modular rack turrets, made out of MDF and Steel. Standard with 10-32 tap front rack rail. Various options available.
2
Durable linoleum countertop with grey T-mold bumper edge. Core material: 1.125″(28.5mm) thick MDF. (Optional finishes available)
3
Vented HDPE access panels for full access to equipment. (Standard black finish)
4
Flat panel monitor arms are available in single and dual configurations.
5
Dual hinged vented metal lid flips up, also removable for full access to cables. (Standard black powder coat)
6
Extruded aluminum rear trac for LCD and accessory arms.
7
Shark Grey 3DL side panel. (alternate finishes available)
8
Removable door and panel (9.5 x 1.25″) for leg routed cable access.
9
Formed steel support foot.
FITT+ Console Features
For additional features and further information, please refer to our product guide in the downloads section below.
1
2
3
4
5
6
7
8
1
Modular rack turrets, made out of MDF and Steel. Standard with 10-32 tap front rack rail. Various options available.
2
Durable linoleum countertop shown with grey polyurethane edge. Core material: 1.125″(28.5mm) thick MDF. (alternate finishes available)
3
Fade 3DL side panel. (alternate finishes available)
4
Flat panel monitor arms are available in single and dual configurations.
5
Dual hinged vented metal lid flips up, also removable for full access to cables. (Standard black powder coat)
6
Vented HDPE access panels for full access to equipment. (Standard black finish)
7
Removable panel for access to leg routed cable chain.
8
Formed steel support foot with removable plate and pass-through access.
Which FITT Console Version Meets My Needs?
Turrets removed for clear view into base. Power Strip (PS-1615-ET) shown in typical mounting location inside FITT console base. These powerstrips are also available with locking plugs (Twist-Lock), junction box for hardwire applications, 20 amp, and international versions. We can also provide Power Distribution Units with IEC 60320/C13 outlets in 120V and 240V versions.
Height Adjustable FITT+ Cable Routing & IGUS Chain
FITT Cabling with Fiber Optic Tray
FiTT Internal & Leg Cabling (Cover Removed)
Optional extension modules available for increased depth.
FITT models can be made at standard fixed height (countertop at 28 5/8” from floor) or height-adjustable with an electric base and weight capacity of over 1000 lbs (452 kg) after factoring out the countertop weight.
World class ergonomics and impressive aesthetics aside, what makes the FITT console line truly special is its highly adaptable nature.
FiTT
FITT features an adjustable base frame which allows it to be offered in two depths. Both A and B depth allow for a variety of upper modules including standard rack turrets or close range turrets which allow the operators to reach critical gear they may need to interact with. Cable access points are available by opening steel removable doors, available on both
Read More...sides of the leg. These legs feature a vertical separation of different types of cables such as power and data, eventually making their way up to our horizontal cable baskets.
FITT+
Available in a fixed height or height-adjustable (+) version. FITT utilizes the same steel base structure as our IntelliTrac product yet with an above the floor design; ideal for when local equipment only requires 4RU or less of space in the base of the console. FITT incorporates our standard 2-channel aluminum tracs for mounting accessories midway
Read More...and behind the countertop. Customizable and interchangeable upper modules are available for mounting rack-gear, lowering monitors, or an extended work surface. Suggested dimensions shown yet the product allows for extensive customization to accommodate various requirements
View FITT Configurations

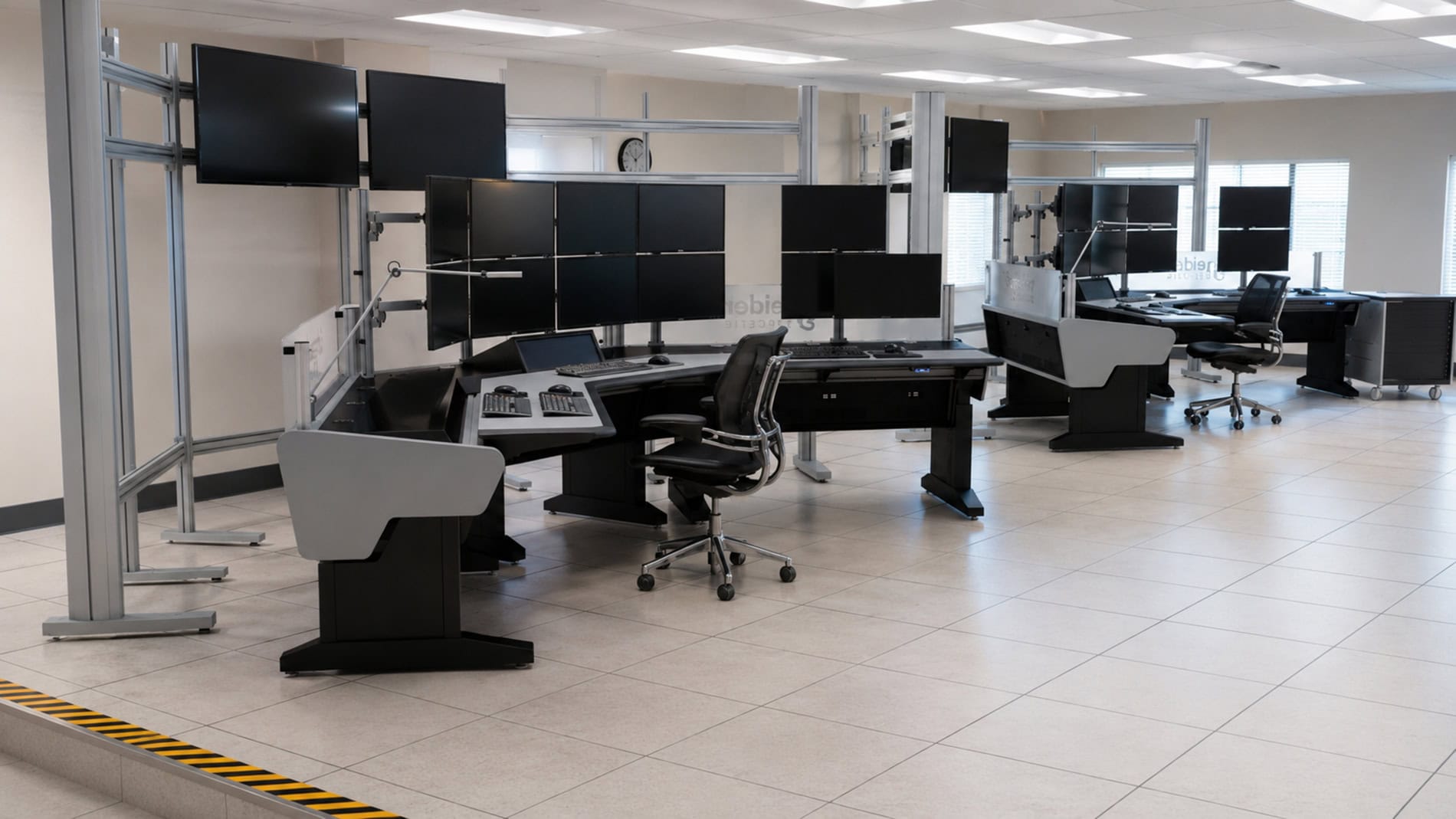

FiTT Series – Modern Control Room Furniture
The FiTT is designed as an IntelliTrac console without the need for robust storage space under the countertop.
FiTT+ Series – Modern Control Room Furniture
The FiTT+ is designed as a height adjustable IntelliTrac console without the need for robust storage space under the countertop.
Here’s What Our Clients Have to Say About FITT Consoles
The FITT furniture is a HUGE hit for the Church. Everyone especially LOVES all of the FOH sit stand workstations.
The new FITT consoles are so much easier to work with than our old furniture. I am very pleased with the professional installation and the excellent response time from TBC.
I always speck TBC, worth every penny of our clients. The aesthetics of TBC console design is only surpassed by their quality, durability, and ergonomics.
Downloads
FITT Product Guide | pdf file – 5.2mb
FITT Finish Guide | pdf file – 1.2mb
FITT-E Finish Guide | pdf file – 1.2mb
Finishes
Surface Finishes
Edge Options
Side Panels
