SmartTrac v2

Ergonomic Flexible Console System

SmartTrac v2

Ergonomic Flexible Console System

From a single operator workstation to complete control rooms, SmartTrac represent the absolute best value in a fully modular, ergonomic, and adaptable technical furniture system. Each console is accessorized to personal preference and designed to incorporate your equipment.

VIEW GALLERY

SmartTrac Edit Desk Features

For additional features and further information, please refer to our product guide in the downloads section below. This is a representative rendering of our product, consult with your sales/design team regarding the details of your project.

1
2
3
4
5
6
7
8
9
10
11
1

Aluminum rack turrets can be added to all SmartTrac Consoles with full cable cores, 2 – 4RU height and custom from 5 – 9RU

2

Shown with our standard finish options, Matte Steele 3DL or Shark Grey 3DL with ergonomic edge.

3

Digital preset controller with sit/stand reminder function and integrated Bluetooth technology (standard); sit/stand up within a 25″-51″ (635 – 1295 mm) range

4

Anodized aluminum leg and steel foot with levelers + powder coat finish, caster foot option available

5

Decorative 3DL side panel

6

Articulating LCD arms are available in single and dual configurations (optional)

7

Full length rear Trac to mount accessories

8

Removable vented rear door and internal device shelf with power strip (optional)

9

IGUS Chains

10

Thermostat and cooling fans.

Fan Speed: 900-2150 RPM

Noise Level: 15-32 dB

11

Wire channel through fixed height leg and foot

Which SmartTrac Console Fits My Needs?

Work Surfaces CablingSit/Stand Turret Depths

The SmartTrac Console is an incredibly adaptive technical furniture system.  Understanding the basic options – as well as your project’s space limitation and equipment needs – will help you become informed to select the correct console.

Click above to learn more about these options

WorkstationWorkstation

ConsoleConsole

SmartTrac work surfaces are classified into four standard shapes; workstations, consoles, client tables, and rectangular.  Custom shapes are also often used to meet client’s functional and aesthetic requirements.  The “console” version is meant to accommodate rack modules (turrets) or infills with a full cable core.  The “workstation” version features an uninterrupted workstation with simple grommets and the option of a full or mini-cable core.  Workstations and consoles in standard sizes and shapes have shorter manufacturing lead times and typically are more budget friendly.

Size and shape of the countertop will indicate which base model SmartTrac is appropriate.  Sizes available range from 1 – 4.  These sizes correspond to the ability of the furniture to accept standard rack-bay equipment.  For example, and ST2 is capable of comfortably supporting two “rack turrets” which accommodate standard size rack mounted equipment and are approximately 21” (533.4mm) wide.

Client TableClient Table

RectangularRectangular

The amount of wires and the presence or absence of rack-mounted equipment above the counter top will indicate what type of cable management “core” is required.  SmartTrac Consoles come with standard, mini cable, or custom cable management core.

1
2
3
Mini Core Comparison
1

Standard Core

2

Mini Core

3

Fixed Height with Mini Cable Core OptionFixed Height with Mini Cable Core Option
Interior leg wire management and 4.5” opening through standard foot

SmartTrac Back-to-Back Workstation

custom core with power/data center  |  11.25″ height
SmartTrac Back-to-Back

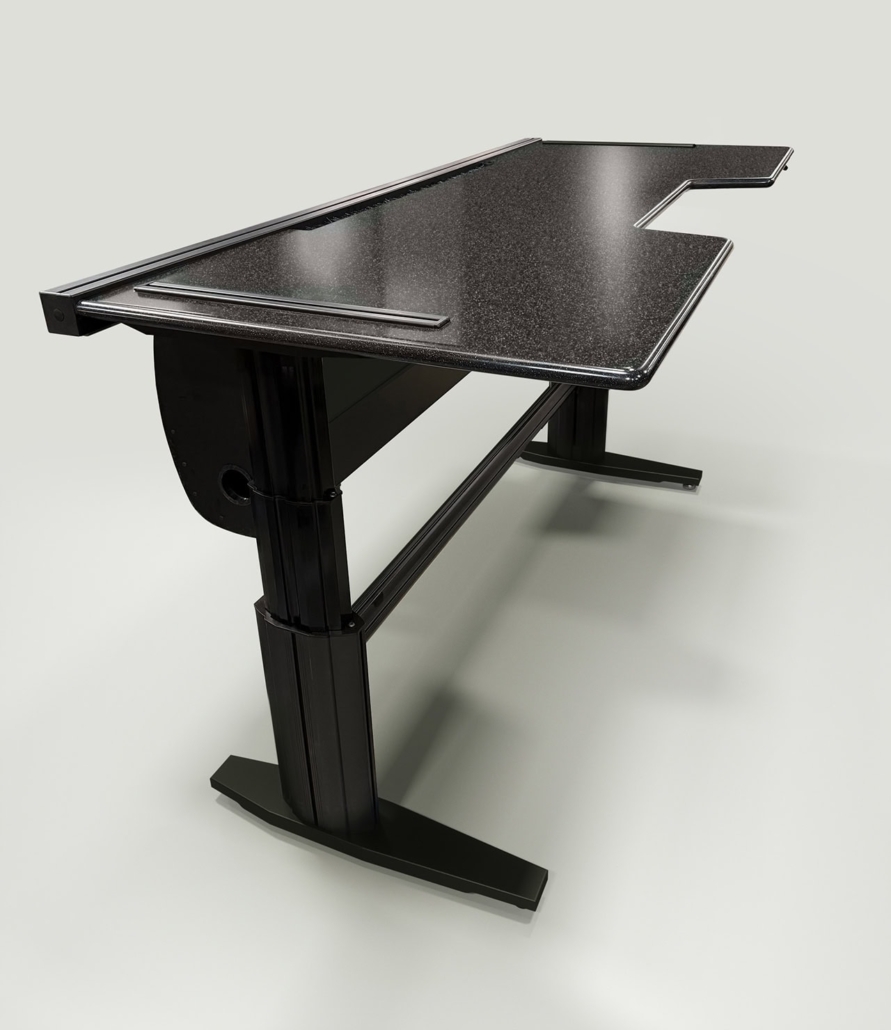

SmartTrac models can be made at standard fixed height (countertop at 28 5/8” from floor), custom height (including standing height), or height-adjustable with an electric base and weight capacity of over 325 lbs (147 kg) after factoring out the countertop weight.Sit to Stand

SmartTracs built with a “console-style” worksurface and full cable  core are capable of accepting turrets to mount rack equipment above the countertop.
Our standard size aluminum turrets are found below.

Turret Depths

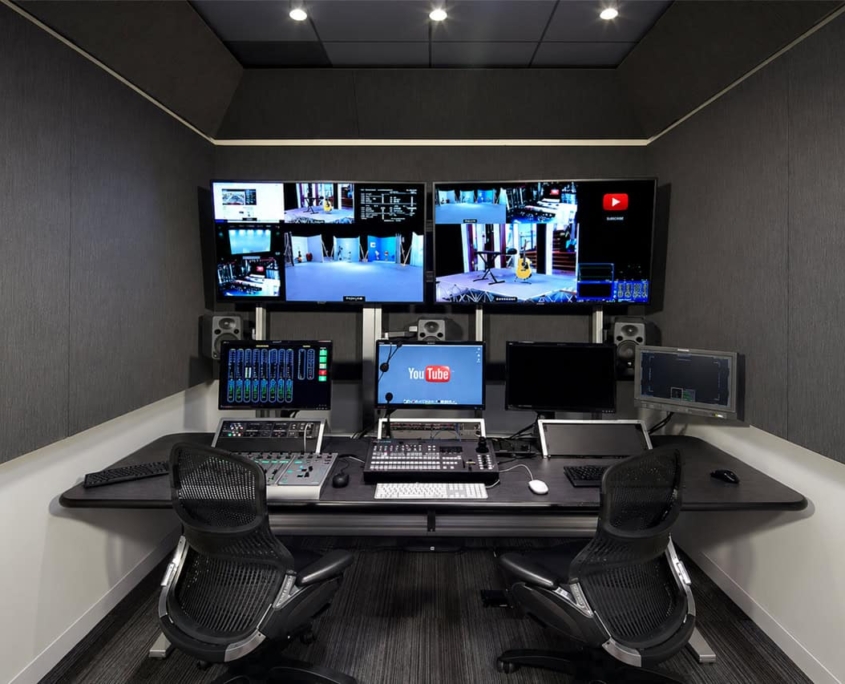

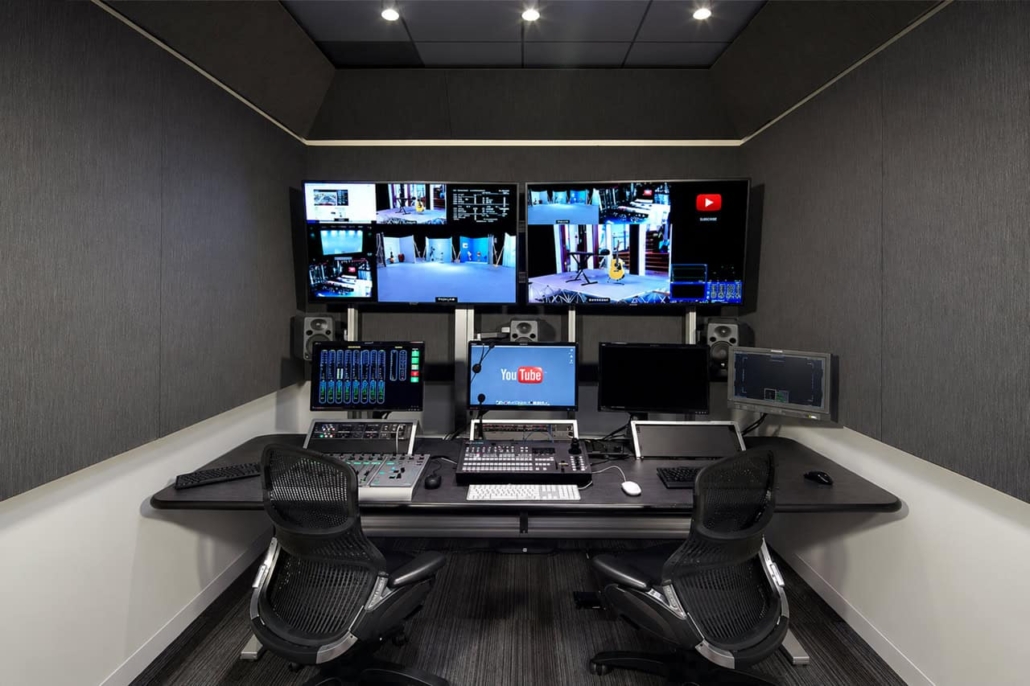

From a single sit-to-stand edit desk to a custom sized network operation center or production control center, SmartTrac Consoles are our most popular platform for technical furniture and is represented in a variety of industries

Preconfigured

Originally designed as video editing AVID workstations for the broadcast market, TBC’s SmartTrac Console Systems have achieved extraordinary popularity due to their world class ergonomics, quality all aluminum construction and good looks in nearly every industry. Unique to this class of console, SmartTrac’s removable turrets, rear device ‘Trac’ and generous cable core with integral power management combine with optional height adjustability for any application that requires a sit stand desk. Each console can be accessorized to personal preference with a variety of articulating monitor arms, CPU holders, speaker mounts, task lamps, and other accessories.

View Preconfigured Models

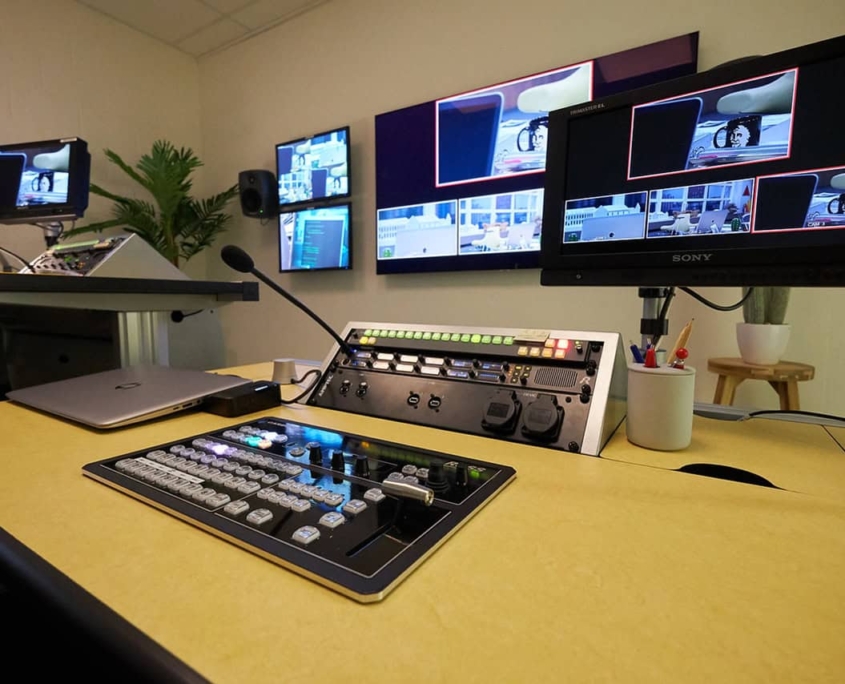

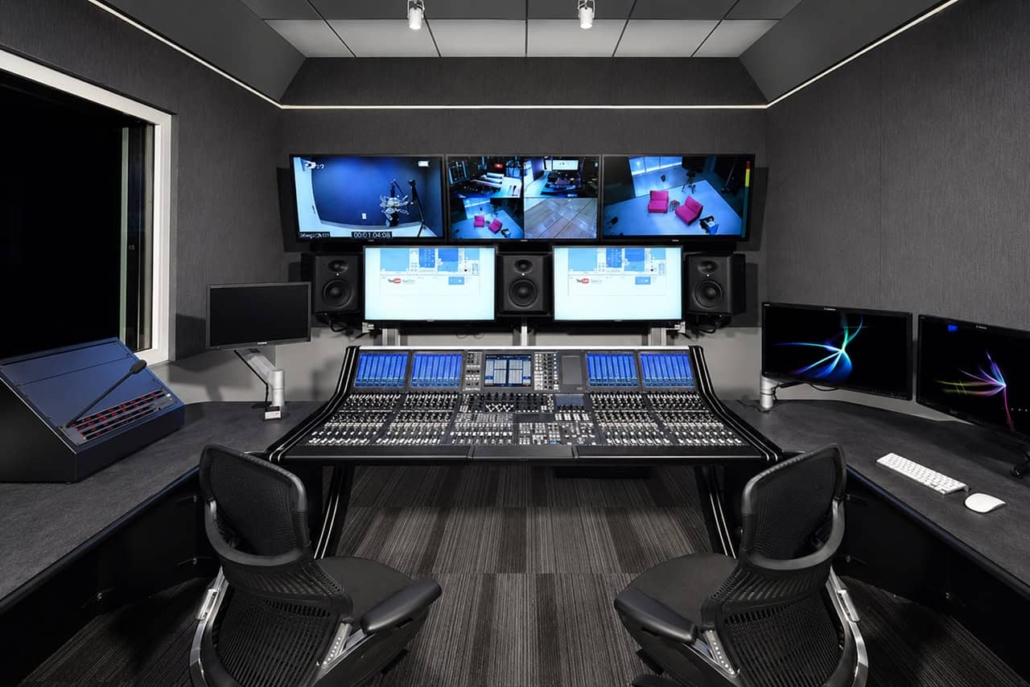

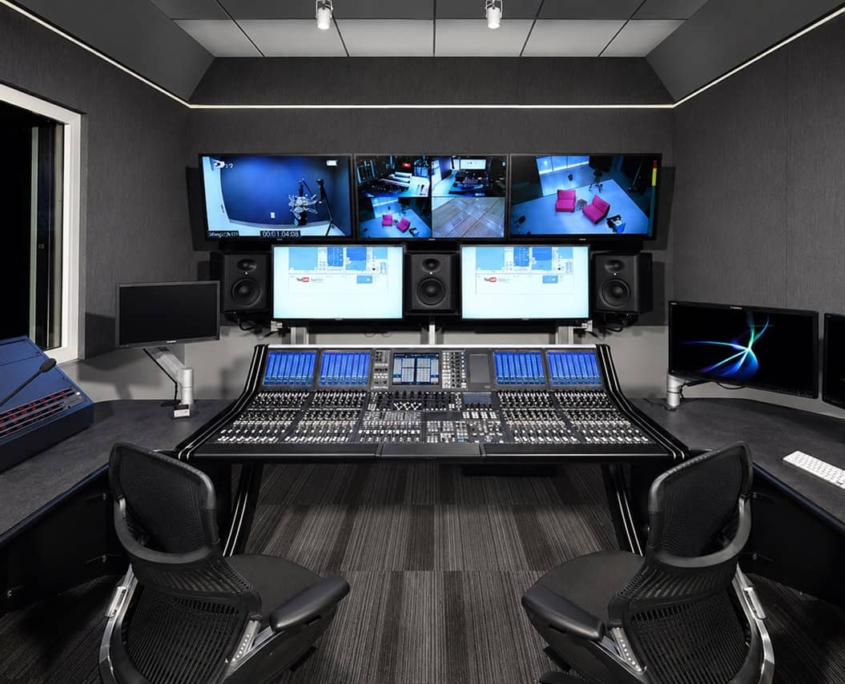

Audio and Podcast

TBC’s radio and podcast furniture concepts are an adaptation of our SmartTrac technical furniture line. These concepts integrate typical modifications and accessories required for a radio/audio environment into our SmartTrac integrated broadcast console furniture system. In line with the rest of our broadcast furniture product line, removable turrets are optional with rack rail, a rear device ‘Trac’ allows for microphones, monitor arms, speakers, tablet, or other accessories to be mounted and adjusted without tools.  Cable management core allows for wire separation, data, and power management. The radio and podcast furniture consoles are all able to accept a variety of microphone or monitor arms into the trac or directly mounted into the surface.

Learn More

Linked and Custom

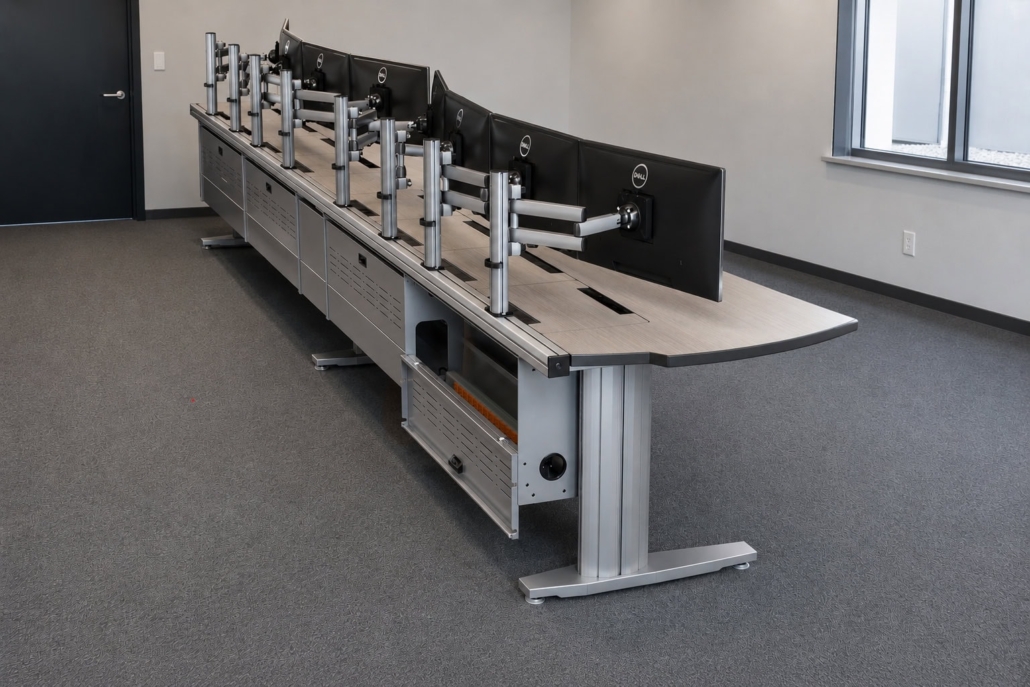

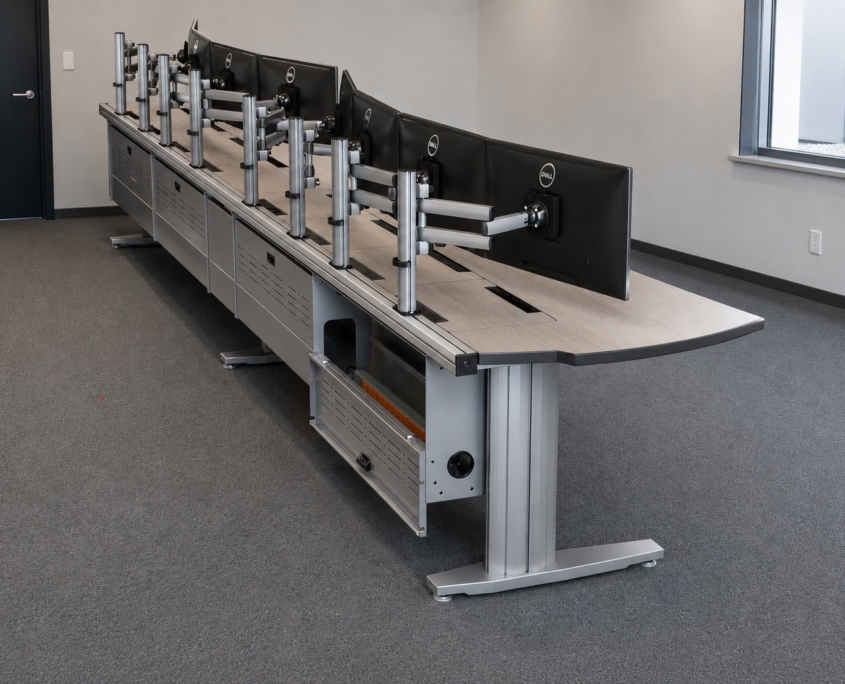

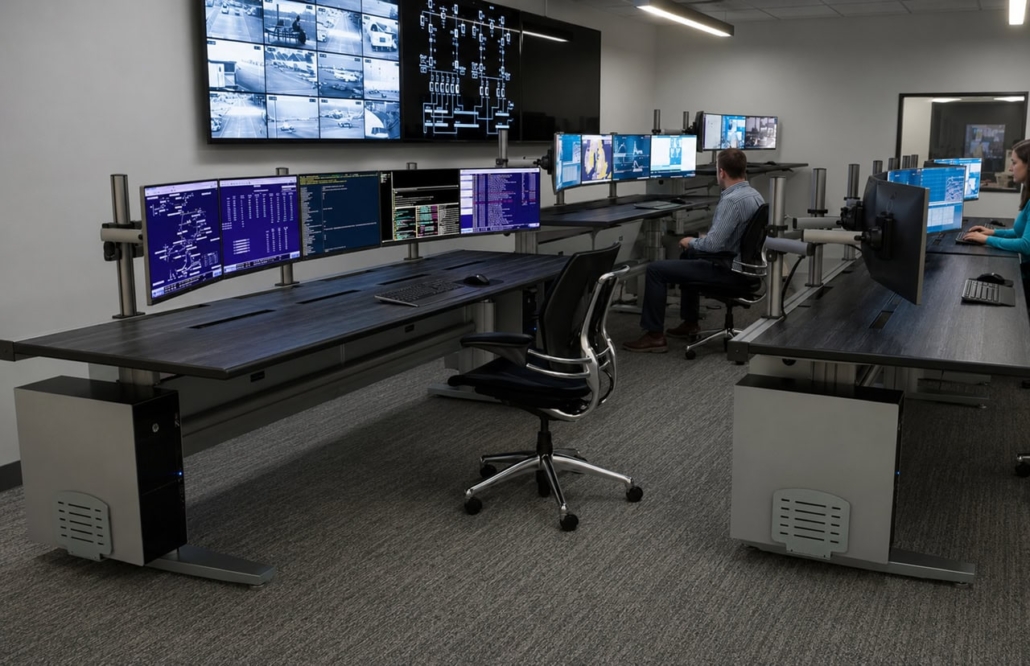

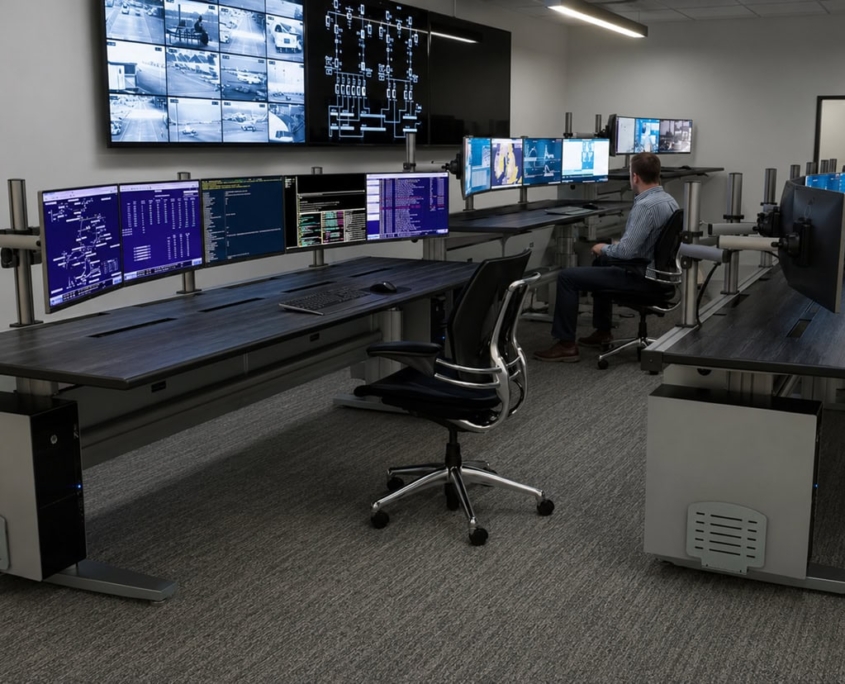

SmartTrac technical furniture provides an ability to gang individual workstation components to form complete console systems.  Originally developed for broadcast control rooms, these configurations have been in a variety of other industries to develop entire Network Operation Centers, Security Operation Center, or other Mission Critical Control Room environments where there is less equipment or co-located equipment in server rooms with no need for a standard “full body” console systems.

Get Started
ConsolesWorkstationsBi-LevelRack ConsolesSuites

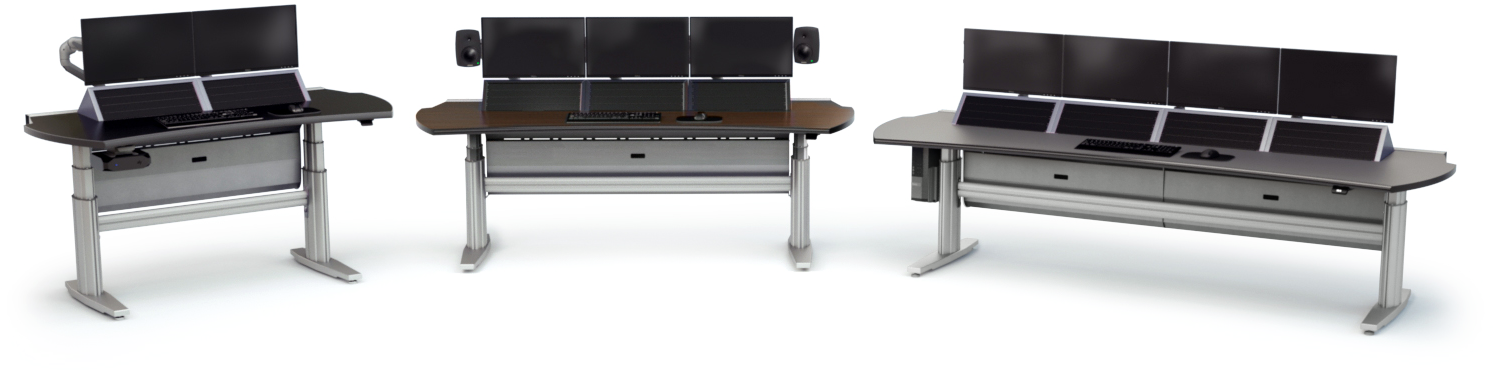

Consoles

The ultimate edit desk. Removable modules to insert rack turrets with a full cable core to support equipment and power management. Optional sit/stand with Bluetooth® enabled controller.

Consoles
ST2-NT ST2-1TH ST2-1T
SPEC SHEET REVIT MODEL
ST3-NT ST3-1TH ST3-2T
SPEC SHEET REVIT MODEL
ST4-NT ST4-2T ST4-2T
SPEC SHEET REVIT MODEL

Workstations

Full depth countertop with optional full or mini cable core to support equipment and power management. Optional sit/stand with Bluetooth® enabled controller.

Workstations
ST2-NT ST2-1TH ST2-1T
SPEC SHEET REVIT MODEL
ST3-CT ST3-WS ST3-WS-LT
SPEC SHEET
ST4-CT ST4-WS ST4-WS-LT
SPEC SHEET

Bi-Level

Custom consoles with features such as dual plane surfaces and optional full or mini cable cores. The bi-level console has the option of adjusting two different surfaces for sit/stand functionality and optimal sightlines.

Bi-Level Consoles
ST2-BL ST2E-BL ST2E-BL-C
ST3-BL ST3E-BL ST3E-BL-C
SPEC SHEET REVIT MODEL

CPU and Rack Desks

Custom technical furniture consoles with features such as rack or computer cabinets instead of traditional aluminum legs, and optional full or mini cable cores.

Rack Consoles
ST2-CPU ST2-RK ST2-CAB
SPEC SHEET REVIT MODEL
ST3-CPU ST3-CPU2 ST3-RK
SPEC SHEET

Suites

Our standard models are built to be modular, and can interface with a number of optional add-on pieces such as side carts, file pedestals, or basic tables. Below are two examples of popular setups which are made of stocked components.

SPEC SHEET REVIT MODEL
SPEC SHEET REVIT MODEL

Product Gallery

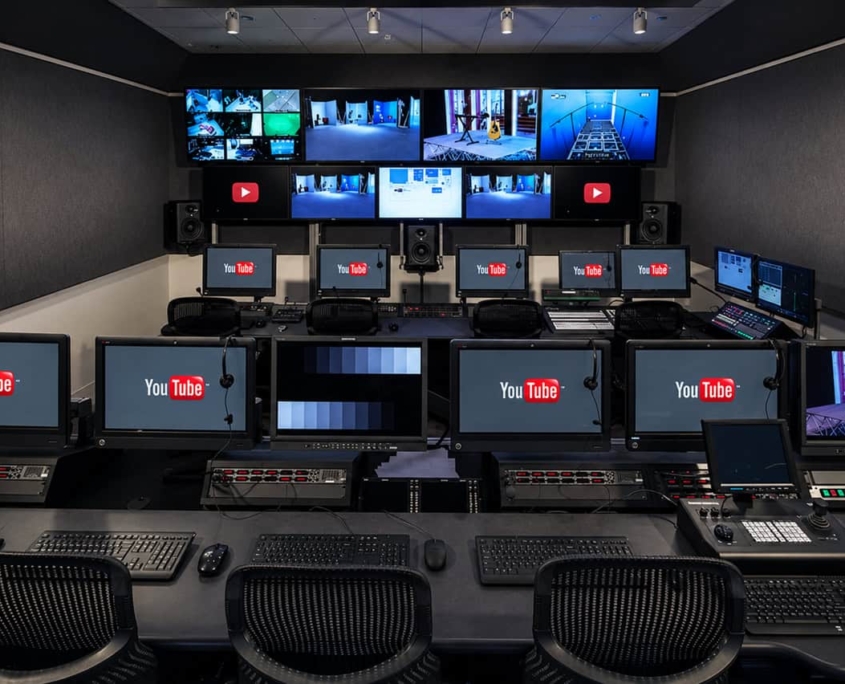

Control Room Furniture Linked Ingest with acrylic dividers
Control Room Furniture Technical Furniture Technical Furniture Technical Furniture Broadcast Furniture Broadcast Furniture Mission Critical Consoles (AAC) Bi-Level SmartTrac in Dallas Cowboys Control Room Security Console Security Console SmartTrac Radio Console Technical Furniture SmartTrac Color Correction Console SmartTrac Edit Desk Audio Control Room Consoles Technical Furniture SmartTrac Workstations Lab Editor Console with Side Cart - storm solidz finish ST Bi-Level ST Central Control Control Room Consoles for Process Control SmartTrac Production Control Room Security Surveillance Control Room Furniture for Radio Broadcast Control Room Furniture Broadcast Control Room Technical Furniture with drop wells Technical Furniture, ST with producer table New Edit Workstation Network Operations Control Single Operator Console Concept ST3 plus (with ht-adjustable monitor array) SmartTrac with Nested Carts and 3-bay monitor frame SmartTrac with integrated audio board SmartTrac v2 ST3 Edit Suite with rear workstation Integrated IntelliTrac + SmartTrac Control Room with custom audio console Audio Control Room SmartTrac Technical Furniture with TracWall Monitor Stands Curved NOC SmartTrac with acrylic privacy panels SmartTrac Control Room Console - Custom Configuration Caterpillar Control Console Immersive Technologies Control Console Immersive Technologies Control Console Curved NOC SmartTrac Curved NOC SmartTrac Sportscast Consoles Edit console for YouTube DirecTV Argentina MC SmartTrac Telecommunications Furniture SmartTrac with Custom Red Plexiglass Finish Custom SmartTrac workcenter (Major League Baseball) ST1E Broadcast Furniture and Rack Equipment Security Control Room AV Collaboration Console Broadcast Furniture Broadcast Furniture Broadcast Furniture Bi-Level Console with tray for 4 CPUs Podcast console graphic console Secirity Console Furniture

Product Videos

Electric SmartTrac Assembly Videos

Fixed Height SmartTrac Assembly Videos

Fixed Height SmartTrac Mini Core Assembly Videos

Visit our YouTube channel to see all of our videos

Here’s What Our Clients Have to Say About SmartTrac

Thank you for the parts we received earlier this week! Both our edit systems are complete and ready to use. Thank you for going above and beyond and helping us complete our installation with ease, we look forward to working with TBC in the future

We had a great experience ordering our new consoles.  Our order was very small in comparison to the projects you work with, yet we were taken care of in a way that made us feel that our order was as important as any other.  Andrew Dressner took great care of us, responded to questions quickly and provided guidance as to what would fit our needs the best.  The consoles showed up in beautiful packaging that in and of itself was art.  I could not be more impressed with our experience and we could not be happier with our new consoles.

I have worked with many facility managers and companies across Texas and in other States. I can tell you that TBC’s consoles are the best engineered and designed product available in the marketplace.

The new TBC furniture which was arrived expertly packaged on one pallet. Everything went together perfectly and I could see the teeny tiny factory test assembly marks that shows me someone actually cared.

It all looks great in our room and everyone smiles ear to ear when looking and feeling the surfaces and trying out the host console height adjustment. The mike booms look spectacular with a vertically-stacked monitor and the Genelec monitor mounts.

You put us into the “latest and greatest” studio category. Can’t wait to order the next console!

Downloads

SmartTrac Product Guide  |  pdf file – 5.3mb

SmartTrac Console System  |  pdf file – 2mb

Control Room Concept (PCR)  |  pdf file – 2mb

Control Room Concept (NOC)  |  pdf file – 2.9mb

Finishes

Surface Finishes

Edge Options

Side Panels

Click Here to View Surface Finish, Edge and Side Panel Options
